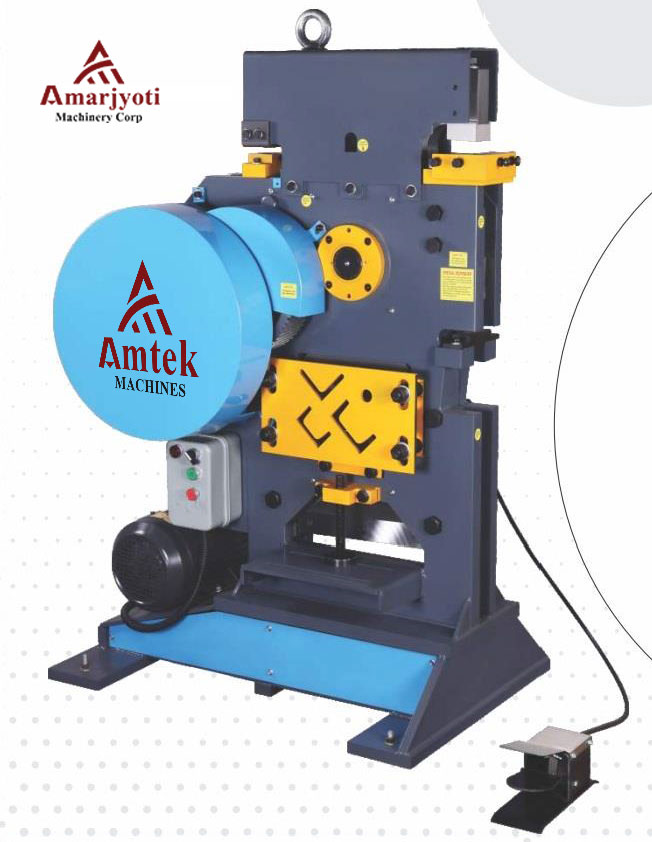

Punching And Shearing Machine

Home Our Products

Punching And Shearing Machine

A Combined Punching and Shearing Machine is versatile, allowing both punching and shearing operation on sheet metal. It streamlines processes, enhancing
efficiency in metal fabrication by performing multiple tasks in a single machine. This can save time, space, and resources in manufacturing operations.
Combined punching and shearing machines find applications in industries like metal fabrication, construction, and manufacturing

Tooling Options: These machines can accommodate various tooling options, such as different punch shapes and shear blades. This versatility allows for
customization based on specific project requirements.

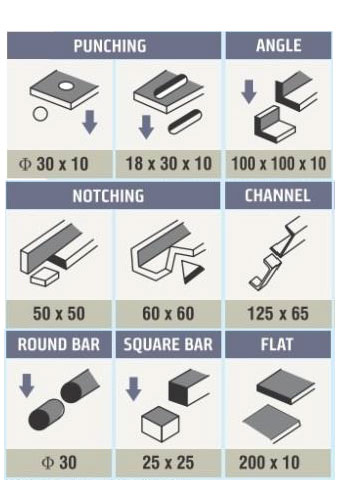

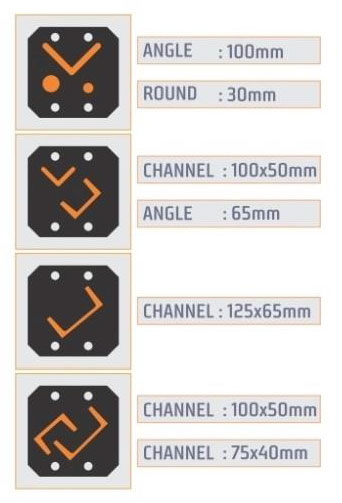

TECHNICAL DETAILS
Model No. QA 34-10
Max Punching Force 50 Ton
Cutter Travel Distance 30 mm
Cutter Speed 30 Times/Min
Motor Power 3 Kw, 440V, 50Hz
Machine Dimension L 1000 x W 600 x H 1200 mm
Approx Weight 710 Kg.

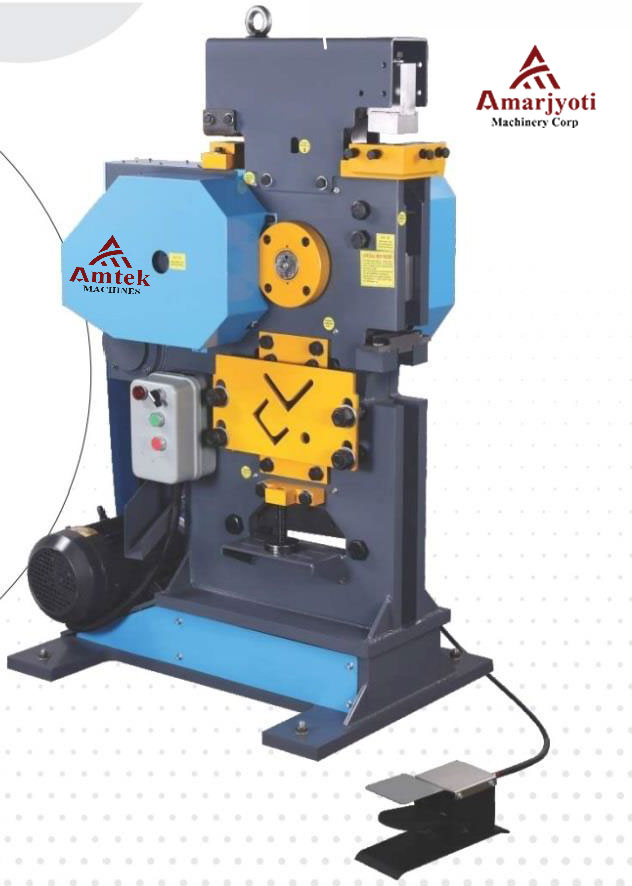

Punching And Shearing Machine

A Punching and Shearing Machine is a versatile piece of equipment commonly used in metalworking and construction industries for shaping, cutting, and punching holes in various metal sheets and plates. These machines are designed to provide high precision and efficiency, offering quick, accurate, and clean cuts for a wide range of applications. The punching function allows for the creation of holes or shapes, while the shearing component is ideal for cutting large sheets of metal into smaller, manageable pieces. By combining both operations in one machine, it saves time, reduces labor costs, and ensures high-quality results. Whether you’re working with steel, aluminum, or other metals, a punching and shearing machine is an essential tool for optimizing your manufacturing and construction processes.

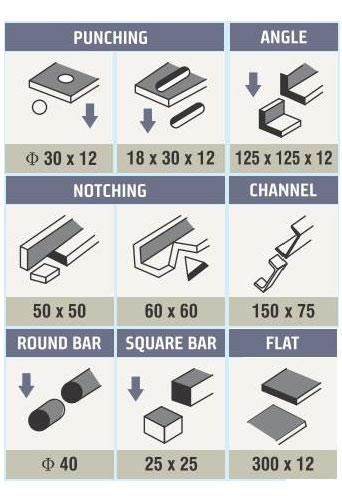

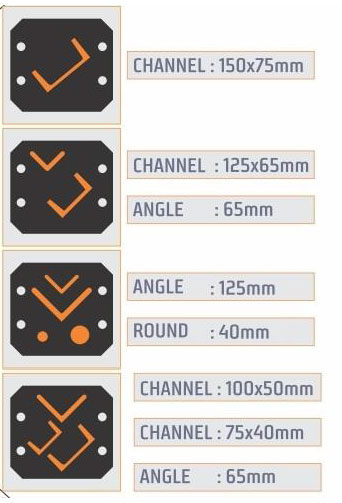

TECHNICAL DETAILS
Model No.QA 34-12
Max Punching Force90 Ton
Cutter Travel Distance36 mm
Cutter Speed30 Times/Min
Motor Power 4 Kw, 440V, 50Hz
Machine DimensionL 1200 x W 750 x H1600 mm
Approx Weight950 Kg.
